Fittings
Forged Pipe Fittings
Our range includes Socket Welded, Threaded, Elbow, High-Pressure Pipe Couplings, and Boss Pipe Fittings. We offer hot dip galvanizing for enhanced durability. Our fittings are renowned for durability, precise dimensions, impeccable finish, leak-proof design, and corrosion resistance.
- Products in range
- 15
Forged Fittings: specification
At a glance
- Dimensional standard
- ASME B16.11 · MSS SP-79 · MSS SP-83 · MSS SP-95 · MSS SP-97 · BS 3799
- Size range
- 1/8″ – 4″ (DN 6 – DN 100)
- Pressure classes
- Class 2000 · Class 3000 · Class 6000 · Class 9000
- Types
- Socket weld · Threaded (NPT / BSPP) · Olets (branch outlets)
- Construction
- Forged
- Ends
- Socket weld · Threaded
- Grades
- Socket Weld (SW)ASTM A105N / ASTM A182 F304/F316
- Threaded (NPT)ASTM A105N (CS) · mild steel (MS)
- Olet FittingsASTM A105N / ASTM A182 F304/F316
- Also offered in
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Duplex 2205, SMO 254
- Nickel 200, Monel, Inconel, Hastelloy C22
Dimension tables by class
5 classes · dimensions, weights, Excel
Socket Weld (SW)
Threaded (NPT)
Olet Fittings
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
About forged fittings
Forged fittings are machined from solid forgings rather than formed from pipe. The result is a thick, compact body suited to small-bore lines at high pressure: instrument and gauge connections, drains and vents, sampling points and branch connections from 1/8″ to 4″.
They are made to ASME B16.11 in two end types. Socket weld fittings take the pipe into a counterbored socket and are fillet-welded around the outside; they are rated Class 3000, 6000 and 9000. Threaded fittings carry tapered NPT or BSPP threads and are rated Class 2000, 3000 and 6000. The class is chosen to match the pipe schedule.

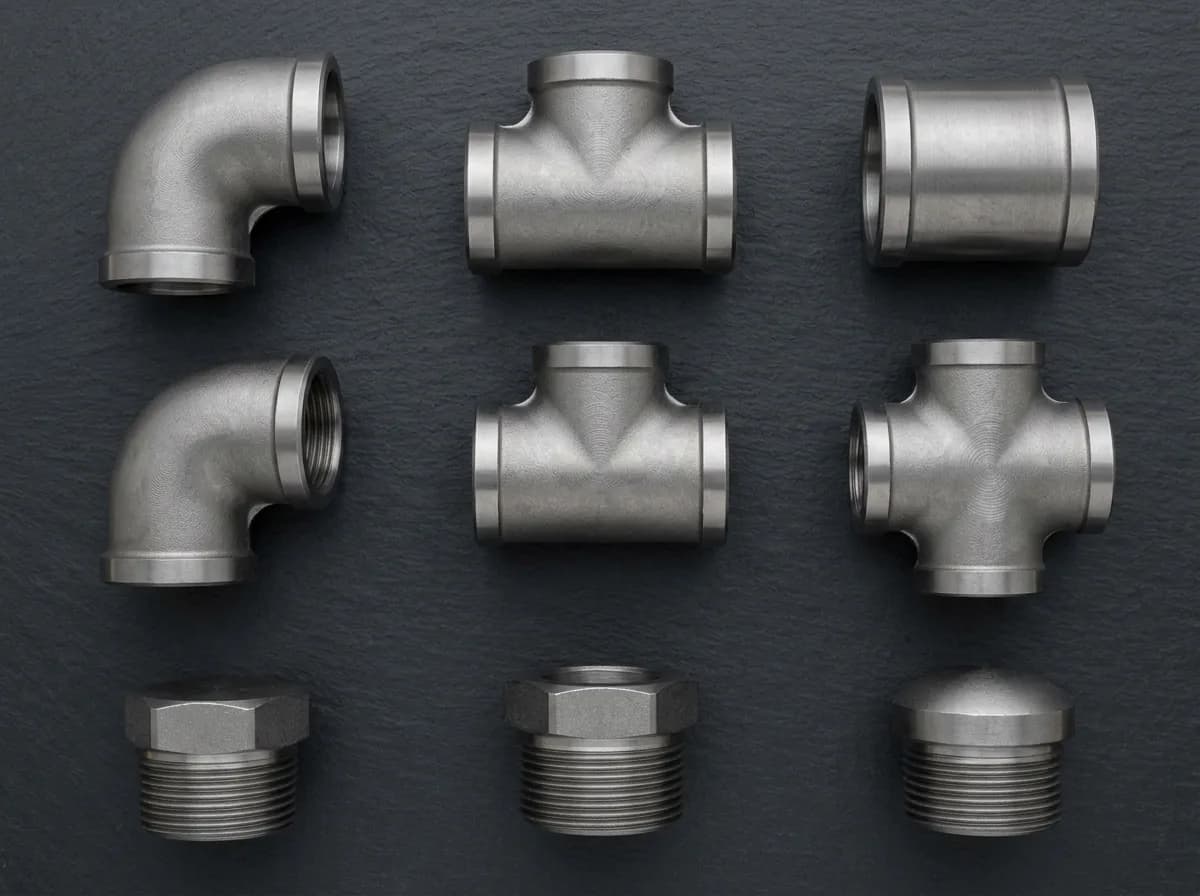

The range covers 90° and 45° elbows, street elbows, tees, crosses, full and half couplings, unions, reducers and reducer inserts, caps, plugs, bushings, swage and hex nipples, adapters and bosses, together with MSS SP-97 branch outlets (olets). Unions follow MSS SP-83 and swage nipples MSS SP-95.
Carbon steel parts are forged from ASTM A105N and stainless steel from ASTM A182 F304 and F316, with hot-dip galvanizing available for corrosive service. Dimensions for every size and class are in the dimension tables below.
Range
Forged Fittings range
The 15 products manufactured and stocked in this category.
Forged 90° ElbowForged 90° elbows to ASME B16.11, socket weld and threaded, 1/8″ to 4″, in A182 stainless, A105 carbon and Cr-Mo alloy steel.View specifications
Forged 45° ElbowForged 45° elbows to ASME B16.11, socket weld and threaded, 1/8″ to 4″, Class 2000 to 9000, in stainless and alloy steel.View specifications
Threaded Street ElbowForged threaded street elbows to ASME B16.11 with one male and one female end, Class 2000, 1/8″ to 4″, NPT or BSPP threads.View specifications
Forged TeeForged equal and reducing tees to ASME B16.11, socket weld and threaded, 1/8″ to 4″, in stainless, duplex and nickel alloys.View specifications
Forged CrossForged equal and unequal crosses to ASME B16.11 for four-way branches, socket weld and threaded, in stainless steel.View specifications
Forged CouplingForged full, half and reducing couplings to ASME B16.11, socket weld and threaded, 1/8″ to 4″, Class 2000 to 9000.View specifications
Forged UnionForged unions to MSS SP-83, socket weld and threaded, 1/8″ to 4″, for joints that must be broken for maintenance.View specifications
Forged ReducerForged concentric and eccentric reducers, socket weld and threaded, 1/8″ to 4″, in stainless, duplex and nickel alloys.View specifications
Socket Weld Reducer InsertForged socket weld reducer inserts to MSS SP-79 and ASME B16.11, 1/8″ to 4″, Class 3000 to 9000, for reducing at a socket weld fitting.View specifications
Forged AdapterForged adapters joining different pipe sizes or end types, socket weld and threaded, 1/8″ to 4″, in stainless, duplex and nickel alloys.View specifications
Forged BossForged boss fittings to ASME B16.11, socket weld and threaded, 1/8″ to 4″, Class 2000 to 9000, in stainless, duplex and nickel alloys.View specifications
Forged End CapForged end caps to ASME B16.11, socket weld and threaded, 1/8″ to 4″, Class 2000 to 9000, in stainless, duplex and nickel alloys.View specifications
Swage & Hex NippleForged swage nipples and hex nipples, plain or threaded ends, 1/8″ to 4″, in stainless, duplex and nickel alloys.View specifications
Threaded BushingForged hex head threaded bushings to ASME B16.11 for reducing a threaded connection, 1/8″ to 4″, NPT or BSPP.View specifications
Threaded PlugForged hex, square head and bull plugs to ASME B16.11 for closing threaded openings, 1/8″ to 4″, NPT or BSPP.View specifications- Size or grade not listed?Send the drawing or bill of materials and we will quote against it, including non-standard sizes.Request a quotation
Where it is used
Applications and service
Typical duty across the process industries we supply.
Socket Welded & Threaded
Full range of socket-weld and threaded forged fittings for high-pressure and instrumentation piping systems.
Forged Elbows
45°, 90° and street elbows engineered for precise dimensions and a leak-proof, corrosion-resistant finish.
Couplings & Boss Fittings
High-pressure pipe couplings and boss pipe fittings, with optional hot-dip galvanizing for corrosive environments.
Configurations
Forms made in this range
Standard configurations, manufactured and stocked. Non-standard sizes and forms are made to drawing.
- Socket Weld Fittings
- Threaded Fittings
- 45° Forged Elbow
- 90° Forged Elbow
- Street Forged Elbow
- High-Pressure Pipe Couplings
Where it is specified
Industries using this component
Sectors that commonly specify the forged fittings, and what else they take from us.
- Petrochemical PlantsDuplex, super duplex and stainless fittings and flanges for corrosive and high-pressure process service.View sector
- Power PlantsAlloy steel buttweld and forged fittings for high-temperature steam, feedwater and condensate circuits.View sector
- Pharmaceutical & BiopharmSanitary SS 316L fittings with documented surface finish, plus forged and instrument fittings for process control.View sector
- Fine ChemicalCorrosion-resistant fittings and flanges in stainless, duplex and super duplex for aggressive process chemistry.View sector
- Manufacturing PlantsCarbon and stainless fittings, flanges and gratings for the water, steam, air and process lines of general manufacturing plants.View sector
Enquiries
Need a quotation for forged fittings?
Send sizes, grades, quantities and the standard the component is specified to, and a sales engineer will come back with availability and pricing.
