Forged 90° Elbow: Socket Weld & Threaded

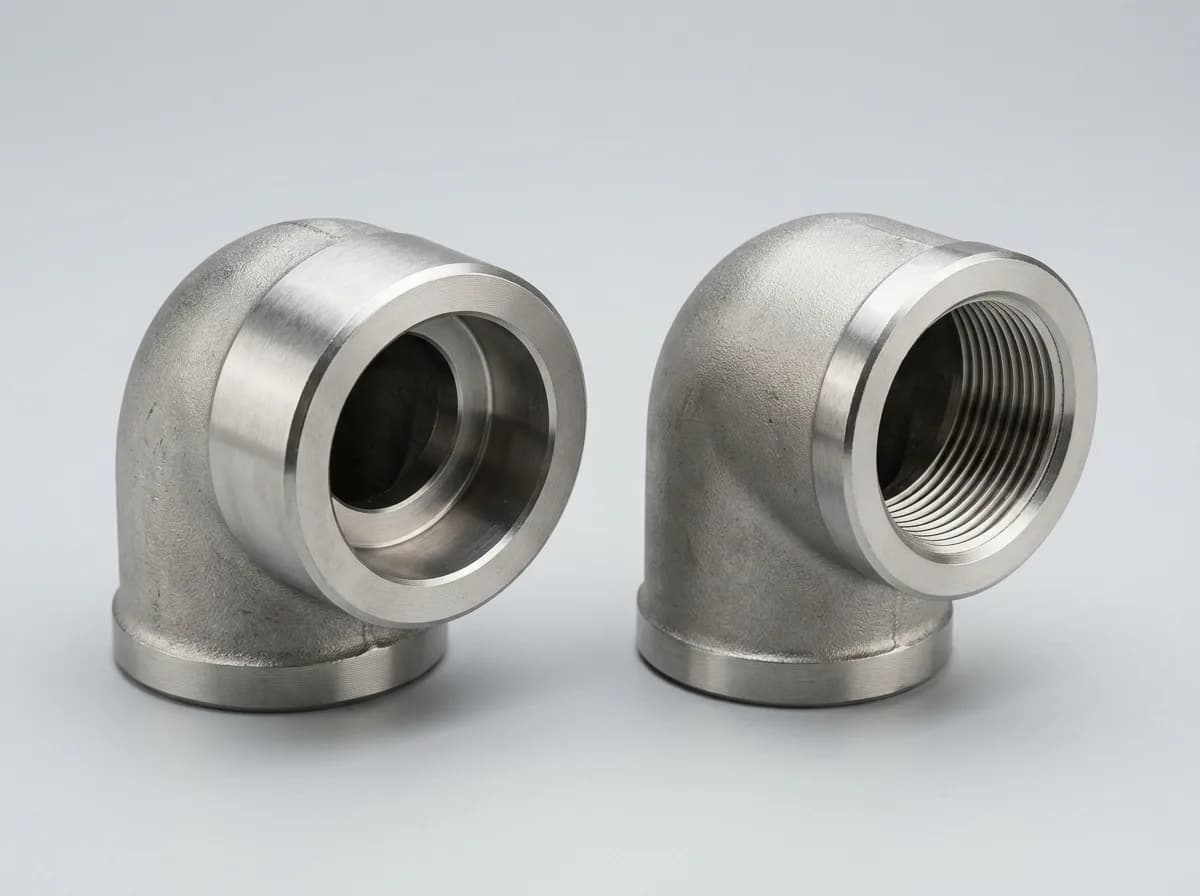

Forged 90° elbows to ASME B16.11, socket weld and threaded, 1/8″ to 4″, in A182 stainless, A105 carbon and Cr-Mo alloy steel.
Specification
At a glance
- Dimensional standard
- ASME B16.11 · BS 3799
- Size range
- 1/8″ – 4″
- Types & ends
- Socket weld · Threaded (NPT / BSPP)
- Grades
- Socket Weld (SW)ASTM A105N / ASTM A182 F304/F316
- Threaded (NPT)ASTM A105N (CS) · mild steel (MS)
- Also offered in
- Stainless steel ASTM A182 F304, F316, F321
- Carbon steel ASTM A105, A350 LF2
- Alloy steel ASTM A182 F5, F9, F11, F22, F91
- Duplex / super duplex ASTM A182 F51, F53, F55
- Brass CA 360, CA 345, CA 377
Dimension tables
4 classes · dimensions, weights, Excel
Socket Weld (SW)
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Forged 90 Degree Elbows stands as a crucial component in the intricate network of piping systems, facilitating the redirection of fluid flow by a precise 90-degree angle. Crafted from solid blocks of metal through a forging process, these elbows boast exceptional strength and durability, ensuring reliable performance in demanding industrial environments.
Forged for Strength and Durability
Forged 90 Degree Elbows derive their name from the meticulous forging process, wherein solid blocks of metal undergo heating and shaping into the desired form. This process results in enhanced strength, durability, and resistance to mechanical stresses and corrosion, ensuring prolonged service life even in the most demanding environments. Crafted meticulously by our skilled artisans, these fittings exemplify resilience and robustness.
Tailored to Perfection
At Fortune Fittings Private Limited, customization is not just a service; it’s our forte. Our Forged 90 Degree Elbows come in various dimensions, meticulously tailored to suit a diverse array of piping systems. Ranging from 1/8 inch to 4 inches in diameter, these fittings ensure compatibility with an extensive range of pipe sizes and configurations. Whether Threaded or Socket Welded, these fittings offer a snug and secure connection, guaranteeing leak-proof operation and optimal fluid flow dynamics.
Ready Inventory, Swift Delivery
At Fortune Fittings Private Limited, we understand the value of efficiency and reliability. With a comprehensive inventory of Forged 90 Degree Elbows in various sizes, materials, and specifications, we ensure prompt delivery to meet our customers’ urgent requirements. Our streamlined logistics and distribution channels enable us to expedite order processing and delivery, minimizing downtime and maximizing productivity for our clients.
Conclusion: Elevating Fluid Conveyance Systems
In conclusion, Forged 90 Degree Elbows stand as indispensable components in the intricate tapestry of fluid conveyance systems. Engineered with precision, manufactured to exacting standards, and deployed across diverse industries, these fittings exemplify efficiency and reliability.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and Gas IndustryUsed in pipelines for transporting crude oil, natural gas, and refined petroleum products.
- Petrochemical PlantsEssential components for conveying various chemicals and fluids in manufacturing processes.
- Power Generation FacilitiesFacilitate the flow of steam and coolant fluids in boilers, turbines, and heat exchangers.
- Chemical ProcessingEmployed in corrosive environments for handling acids, alkalis, solvents, and other reactive substances.
- Water Treatment PlantsUtilized for directing water flow in purification, filtration, and distribution systems.
- Mining and MineralsIntegral for conveying slurries, ores, and mineral concentrates in mining operations.
