Forged 45° Elbow: Socket Weld & Threaded

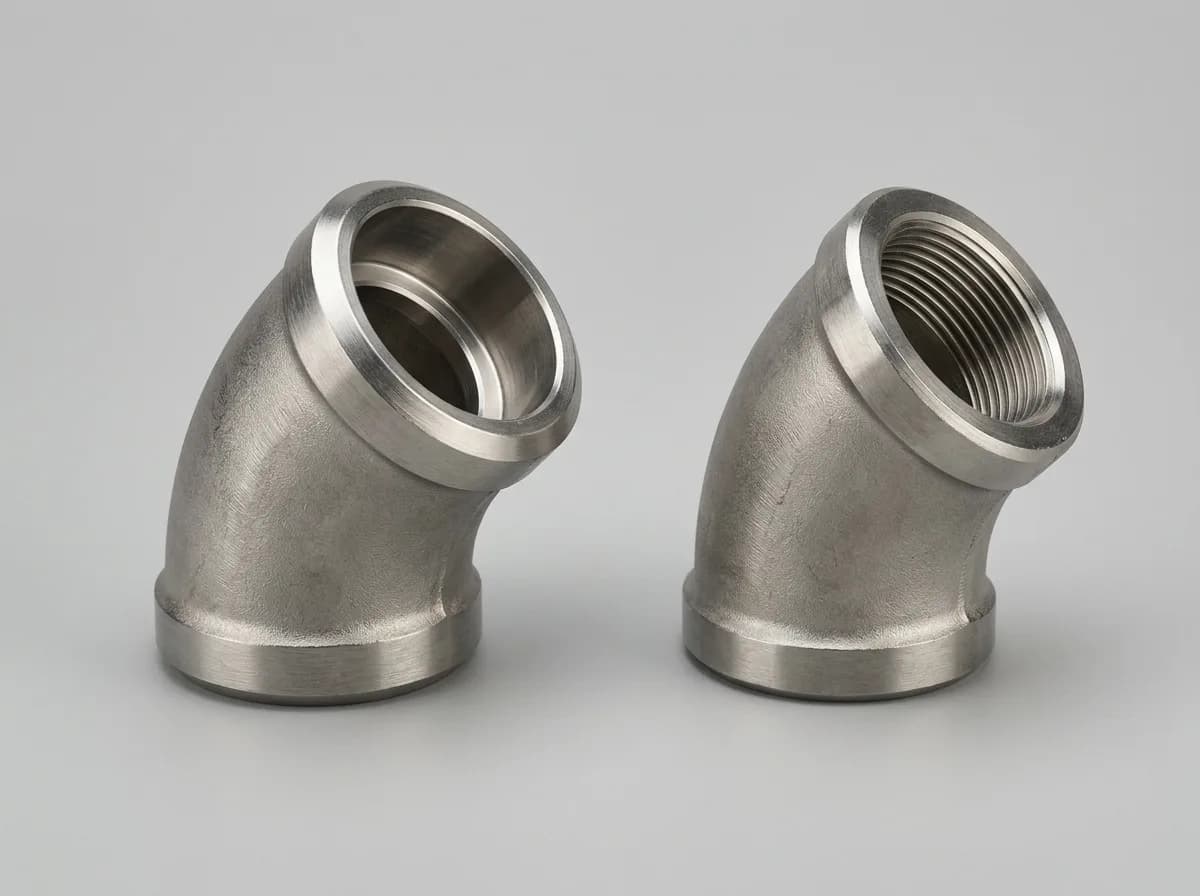

Forged 45° elbows to ASME B16.11, socket weld and threaded, 1/8″ to 4″, Class 2000 to 9000, in stainless and alloy steel.
Specification
At a glance
- Dimensional standard
- ASME B16.11 · BS 3799
- Size range
- 1/8″ – 4″
- Pressure classes
- Class 2000 · Class 3000 · Class 6000 · Class 9000
- Types & ends
- Socket weld · Threaded (NPT / BSPP)
- Materials
- Stainless steel 304/304L, 316/316L
- Alloy 20
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Among the array of forged fittings designed to optimize fluid flow, the Forged 45 Degree Elbows stands out for its ability to redirect flow direction with finesse. Let’s delve into the intricacies of this indispensable component.
Forged 45 Degree Elbows: Crafting Fluid Dynamics
A Forged 45 Degree Elbow is a pivotal pipe fitting engineered to facilitate a smooth transition in fluid flow direction by precisely 45 degrees. Available in both threaded and socket weld configurations, they offer seamless integration into diverse piping systems.
Standard Specifications and Precision Crafting
Manufactured in compliance with stringent standards such as ANSI / ASME B16.11, MSS SP-79, 83, 95, 97, and BS 3799, Forged 45 Degree Elbows adhere to precise specifications. The range encompasses pressure classes from 2000LBS to 9000LBS, catering to varying application requirements. With dimensions conforming to ASME/ ANSI B16.11 and MSS-SP-79, 83, 95, 97, these fittings ensure seamless compatibility and consistent performance.
Conclusion: Elevating Fluid Conveyance Systems
In conclusion, Forged 45 Degree Elbows stand as indispensable components in the intricate tapestry of fluid conveyance systems. Engineered with precision, manufactured to exacting standards, and deployed across diverse industries, these fittings exemplify efficiency and reliability.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and GasIn oil refineries and natural gas processing plants, Forged 45 Degree Elbows are utilized to navigate the complex network of pipelines, facilitating the smooth flow of crude oil, natural gas, and refined petroleum products.
- Chemical ProcessingWithin chemical plants, these fittings play a crucial role in directing the flow of various chemicals and solvents through intricate piping systems, ensuring precise and controlled processing.
- PetrochemicalIn petrochemical facilities, Forged 45 Degree Elbows are integral components in the transportation of hydrocarbons, intermediates, and finished products, contributing to the efficiency and safety of operations.
- Water TreatmentMunicipal water treatment plants rely on Forged 45 Degree Elbows to maneuver water through treatment processes, including filtration, disinfection, and distribution, maintaining the quality and safety of drinking water supplies.
- HVAC SystemsHeating, ventilation, and air conditioning (HVAC) systems incorporate these fittings to regulate the flow of air and refrigerants, ensuring optimal climate control and energy efficiency in commercial and residential buildings.
- Power GenerationWithin power plants, Forged 45 Degree Elbows aid in the circulation of water, steam, and coolant fluids, supporting the efficient operation of turbines, boilers, and heat exchangers.
