Forged Fittings

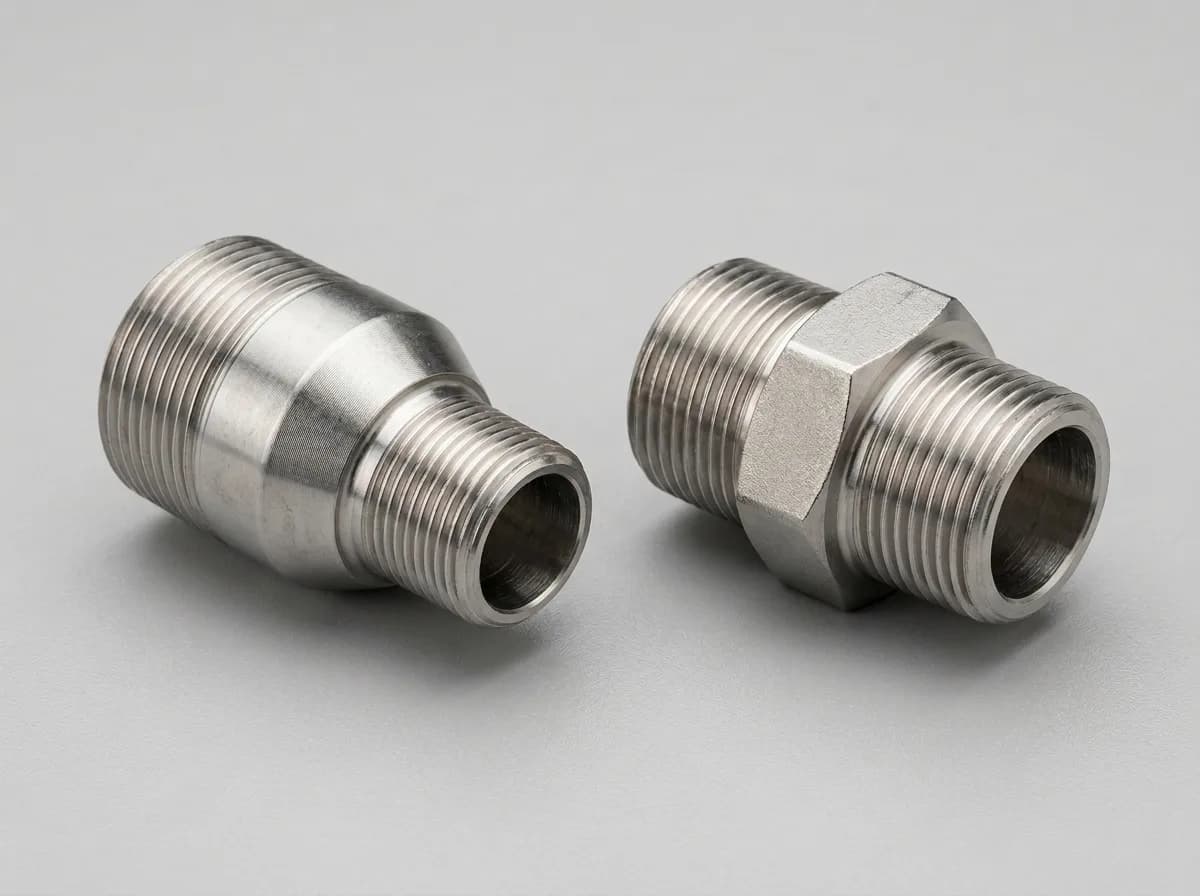

Forged Swage Nipple and Hex Nipple
Forged swage nipples and hex nipples, plain or threaded ends, 1/8″ to 4″, in stainless, duplex and nickel alloys.
Specification
At a glance
- Dimensional standard
- ASME B16.11 · MSS SP-95 · BS 3799
- Size range
- 1/8″ – 4″ (DN 6 – DN 100)
- Types & ends
- Swage nipple · Hex nipple · Socket weld · Threaded (NPT / BSPP)
- Materials
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Duplex 2205, SMO 254
- Nickel 200, Monel, Inconel, Hastelloy C22
- Titanium, Copper-nickel, Aluminium, Brass
- Carbon steel ASTM A105N (catalog)
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Swage Nipples and Hex Nipples are essential forged fittings used for connecting sections of pipe or attaching pipes to valves and other components.
Types of Nipples and Their Uses
- Swage Nipple:Description: Swage Nipples are designed to connect two pipes of different diameters. One end has a larger diameter for connection to a larger pipe, while the other end has a smaller diameter for connection to a smaller pipe. These fittings are available in both threaded and socket weld forms.
- Applications: Used in various industries, including oil and gas, chemical, and petrochemical, to ensure a seamless connection between pipes of different sizes.
- Hex Nipple:Description: Hex Nipples feature two male threaded ends of the same size and a hexagonal body for easy tightening or loosening with a wrench. They are also available in threaded and socket weld forms.
- Applications: Ideal for situations requiring frequent assembly and disassembly, such as in maintenance operations.
Conclusion
Our commitment to quality, a wide range of material options, and adherence to international standards ensure that our forged swage/hex nipples meet the most demanding industrial requirements.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and GasUsed in pipelines and systems requiring reliable connections.
- Chemical ProcessingSuitable for handling corrosive materials.
- PetrochemicalEnsures safe and efficient connections in processing plants.
- Power GenerationUsed in high-pressure and high-temperature applications.
