Forged Fittings

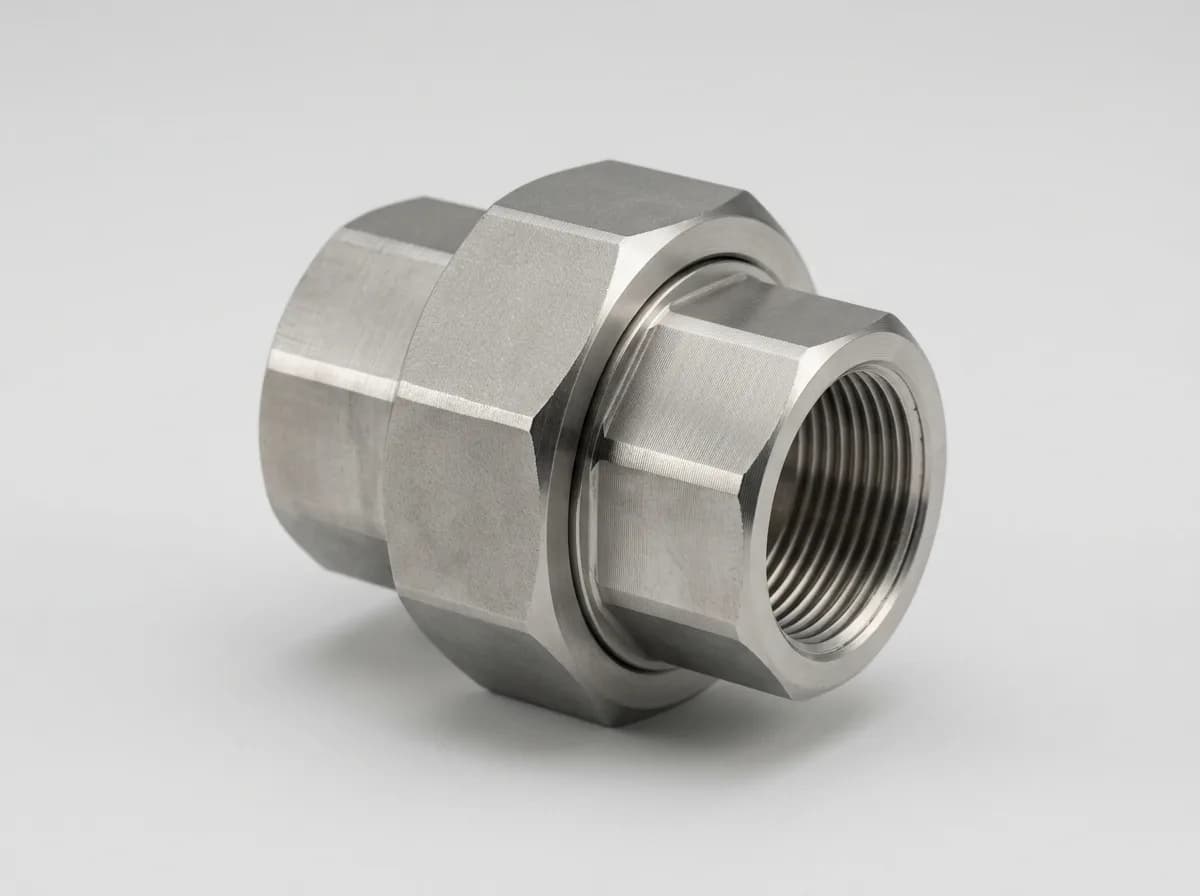

Forged Union: Socket Weld & Threaded
Forged unions to MSS SP-83, socket weld and threaded, 1/8″ to 4″, for joints that must be broken for maintenance.
Specification
At a glance
- Dimensional standard
- MSS SP-83
- Size range
- 1/8″ – 4″ (DN 6 – DN 100)
- Pressure classes
- Class 3000 · Class 6000
- Types & ends
- Socket weld · Threaded (NPT / BSPP)
- Grade
- ASTM A105N (CS) · mild steel (MS)
- Also offered in
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Duplex 2205, SMO 254
- Nickel 200, Monel, Inconel, Hastelloy C22
- Titanium, Copper-nickel, Aluminium, Brass
- Carbon steel ASTM A105N (catalog)
Dimension tables
2 classes · dimensions, weights, Excel
Threaded (NPT)
ASME B16.11
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Forged Union fittings are a type of Forged Fittings, crucial in piping systems, enabling the connection of two pipes or sections of piping with a strong, durable, and leak-proof joint. At Fortune Fittings Private Limited, we specialize in manufacturing high-quality ASME B16.11 Unions, both threaded and socket weld types, suitable for various industrial applications.
What is a Forged Union?
ASME B16.11 unions are standardized by the American Society of Mechanical Engineers (ASME), ensuring consistent dimensions and specifications. These unions are forged, a process involving heating and shaping steel to create robust fittings that can withstand high pressures and provide reliable performance.
Types of Forged Steel Unions
- Threaded (Screwed) Unions:Description: These unions have internal threads, allowing them to be screwed onto pipes or fittings with matching threads.
- Applications: Commonly used in low-pressure applications where ease of assembly and disassembly is needed.
- Socket Weld Unions:Description: These unions feature a socket on one end, enabling them to be welded onto pipes or fittings with compatible socket weld ends.
- Applications: Ideal for high-pressure applications requiring a permanent, strong joint.
- Galvanized Unions:Description: These unions are coated with a layer of zinc to prevent corrosion, making them suitable for outdoor or corrosive environments.
- Applications: Widely used in environments exposed to moisture or chemicals to prevent rust and corrosion.
- Orifice Unions:Description: These specialized unions have a small hole or “orifice” in the center, allowing for precise measurement and control of fluid flow.
- Applications: Used in systems where accurate flow measurement and control are critical, such as in chemical processing or fluid handling.
Conclusion
Our commitment to quality, wide range of material options, and adherence to international standards ensure that our forged unions meet the most demanding industrial requirements. Contact us today to learn more about our products and how we can fulfill your piping system needs.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and GasConnecting pipes in exploration and processing facilities.
- PetrochemicalHandling corrosive substances in chemical processing.
- Power GenerationUsed in high-temperature and high-pressure steam pipelines.
- Water TreatmentEnsuring reliable connections in water filtration and distribution systems.
