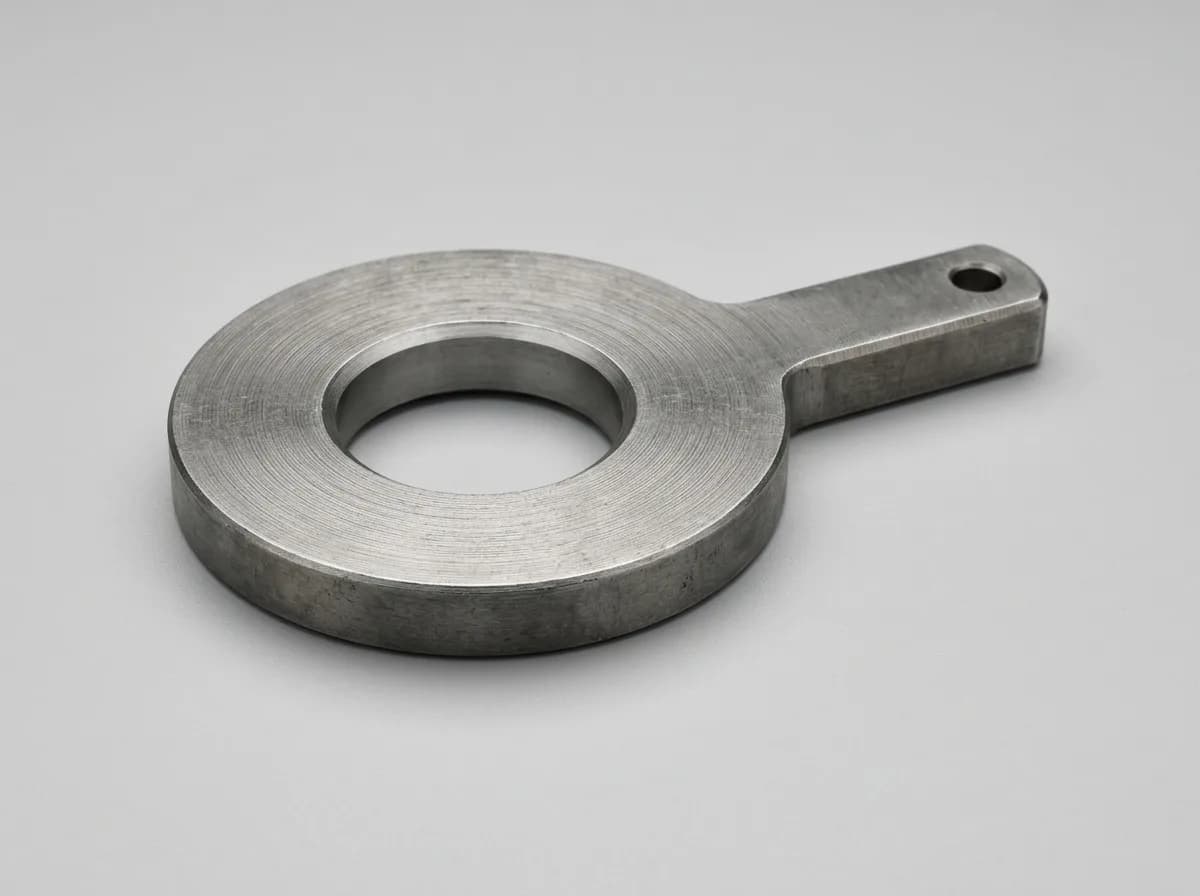

Ring Spacer Flange
Ring spacers to ASME B16.48 that increase the distance between two flanges where extra space is needed in a piping system.
Specification
At a glance
- Dimensional standard
- ASME B16.48
- Types & ends
- Ring spacer
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Our Ring Spacer Flanges, compliant with ASME B16.48 standards, offer reliable performance and durability, making them ideal for various applications.
Understanding Ring Spacer Flanges
Ring Spacer Flanges, also referred to as Spacer Rings for Raised Face Flanges, serve the crucial function of increasing the distance between two flanges within a piping system. Comprising a raised face flange and a spacer ring, these flanges facilitate efficient spacing adjustments while maintaining a secure connection.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Crafted with precision using advanced technology and techniques, our Ring Spacer Flanges are engineered to withstand extreme temperatures, pressures, and corrosive environments.
- These versatile components find applications in scenarios where additional space between flanges is required, such as equipment additions or replacements in piping systems.
- They are also utilized to reduce flange connection sizes or create transitions between different flange types.
