Paddle Blind (Spade) Flange
Paddle blinds (spades) to ASME B16.48 for isolating a line between two flanges, 1/2″ to 48″, up to Class 2500, in A105 carbon steel.
Specification
At a glance
- Dimensional standard
- ASME B16.48
- Size range
- 1/2″ – 48″ (15 – 1200 NB)
- Pressure classes
- Class 150 · Class 300 · Class 600 · Class 900 · Class 1500 · Class 2500
- Types & ends
- Paddle blind (spade)
- Materials
- Carbon steel ASTM A105
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Our Paddle Blind Flanges conform to ASME B16.48 standards, ensuring precise dimensions, reliable materials, and strict tolerances.
What is a Paddle Blind Flange?

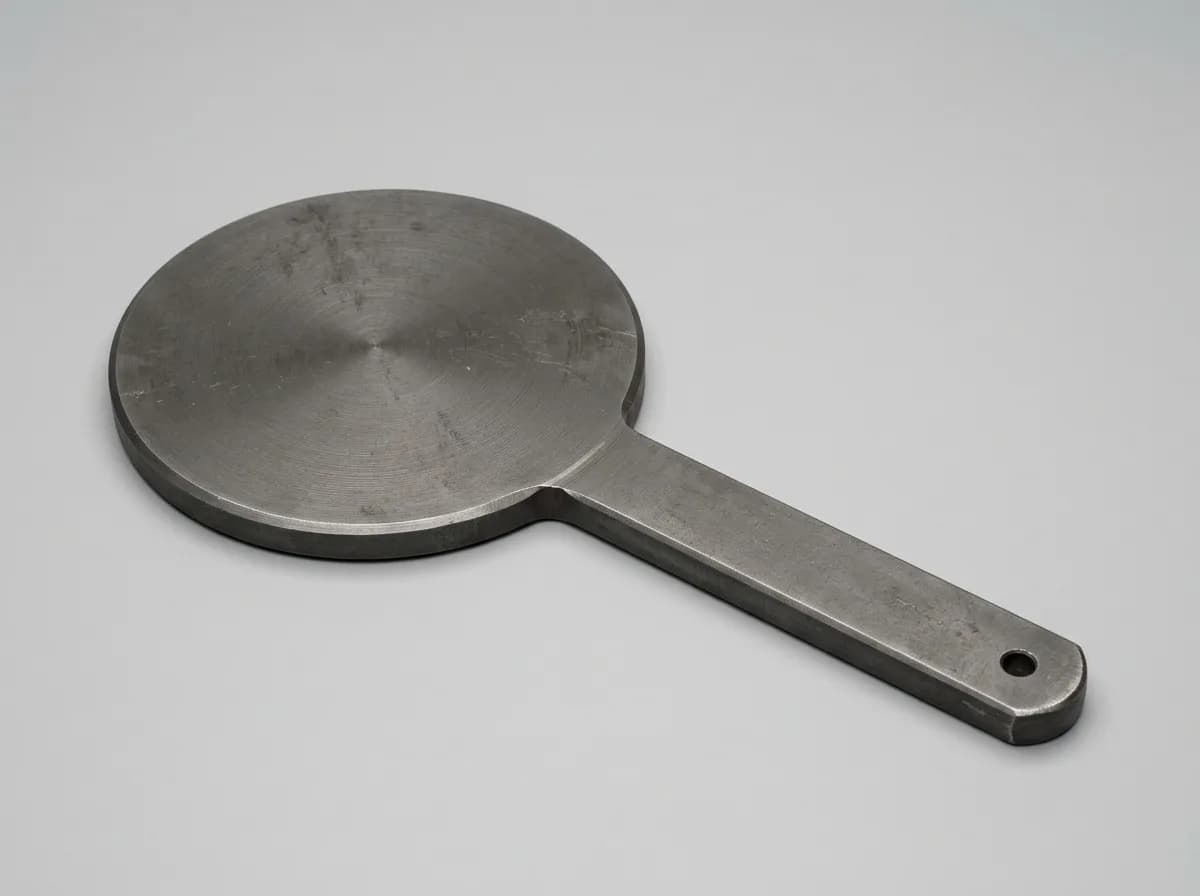

Paddle Blind Flanges, also known as Spade or Paddle Blank Flanges, are essential components used to block off a section of a pipeline or vessel during maintenance or repair work. These flanges consist of a solid plate or paddle that fits between two standard flanges and are secured by bolts. They are typically made from robust materials such as A105 carbon steel and are available in various sizes and pressure ratings to accommodate different industrial needs.
Product Range
Fortune Fittings Private Limited maintains a ready inventory of Paddle Blind Flanges in various sizes and pressure ratings, including 2 Inch, 3 Inch, 4 Inch, 6 Inch, and 8 Inch Spade Blind Flanges. Our products are designed to meet international standards such as ASME, BS, DIN, and more, ensuring broad compatibility and high performance.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Paddle Blind Flanges are vital in applications requiring frequent maintenance or where complete isolation of a pipeline section is necessary.
- Conforming to ASME B16.48 standards, these flanges are manufactured to precise specifications, ensuring compatibility and safety in various industrial environments, including oil and gas, petrochemical, and power generation industries.
Engineering
Technical notes
How the component behaves in the line, and the details to settle before an order is placed.
How it behaves in the line
- The flat-plate design results in higher bending stress at centre: wall thickness is greater than equivalent pipe
- Available in all standard pressure classes (BS-10 Table D, ASME B16.5 Class 150–2500)
- Can be drilled and tapped for instrumentation connections
- Maximum unsupported span is limited: check ASME B31.3 Appendix E or equivalent
Confirm when ordering
- For future connections: specify drilling pattern on blind face in advance
- Confirm gasket type matches mating flange facing (FF vs RF)
Dimensions, wall thicknesses and pressure classes are in the dimension tables; the governing standards are summarised on the standards reference.
Characteristics
What defines the range
- High Durability: Manufactured from high-quality materials like carbon steel, stainless steel, and alloy steel.
- Versatility: Available in multiple sizes, from ½ inch (15 NB) to 48 inches (1200 NB), and pressure classes up to 2500 LBS.
- Reliable Sealing: The “RF” (Raised Face) designation ensures a tight seal against the mating flange.
- Custom Solutions: Offers customization options to meet specific customer requirements.
