Buttweld Concentric Reducer

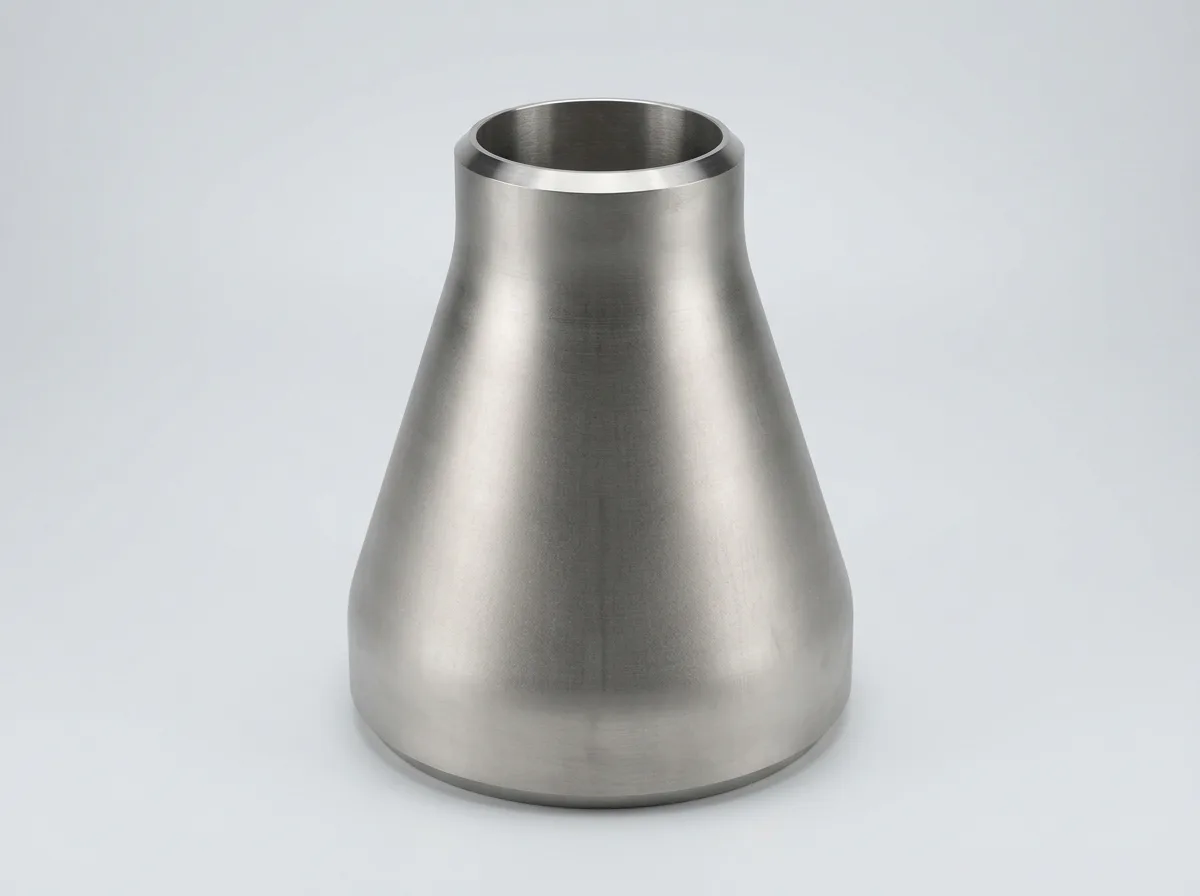

Buttweld concentric reducers to ASME B16.9 for an in-line size change on a common centreline, in carbon, stainless and alloy steel.
Specification
At a glance
- Dimensional standard
- ASME B16.9
- Types & ends
- Concentric (common centreline) · Butt weld (bevelled) ends
- Grades
- Mild SteelIS 1239 Part 2 / IS 2062 Gr. A
- Carbon SteelASTM A234 WPB / ASTM A420 WPL6
- Stainless SteelASTM A403 WP304/304L/316/316L
- Alloy SteelASTM A234 WP11 / WP22 / WP91
- Also offered in
- Stainless steel
- Carbon steel
- Alloy steel
Dimension tables
8 classes · dimensions, weights, Excel
Carbon Steel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Buttweld Concentric Reducer play a crucial role in piping systems by seamlessly reducing the pipe size from a larger diameter to a smaller one. This essential fitting ensures smooth and efficient flow transition while maintaining optimal performance in various applications.
Our Buttweld Concentric Reducers are available in a variety of materials, including copper and stainless steel, carefully chosen for their corrosion resistance, strength, and compatibility with different fluids. We also offer custom-made solutions to meet specific project requirements, ensuring maximum flexibility and adaptability.
A Concentric Reducer is designed to connect pipes of different sizes in a straight line, achieving a uniform reduction in diameter from one end of the fitting to the other. This gradual reduction minimizes turbulence in vertical piping systems, ensuring smooth flow and efficient operation.
Fortune Fittings Private Limited takes pride in offering Buttweld Concentric Reducers with accurate dimensions and precise manufacturing, guaranteeing a proper fit and optimal flow rate in piping systems.
What is a Buttweld Concentric Reducer?
A Buttweld Concentric Reducer is a type of pipe fitting used to connect pipes of different diameters in a straight line while maintaining a uniform centerline. It features a conical shape with a larger diameter at one end and a smaller diameter at the other, resulting in a gradual reduction in pipe size. This reduction facilitates smooth flow transition and minimizes turbulence in vertical piping systems.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and Gas IndustryUsed in pipelines for transporting crude oil, natural gas, and refined petroleum products, facilitating smooth flow transition between pipes of different diameters and ensuring efficient fluid transportation.
- Chemical ProcessingApplied in chemical manufacturing plants for conveying various chemicals, acids, and solvents, ensuring precise flow control and distribution in processing operations.
- Water Treatment PlantsUtilized in water treatment facilities for directing the flow of treated water, chemicals, and wastewater between different treatment processes, optimizing water purification and treatment efficiency.
- Petrochemical IndustryEmployed in petrochemical refineries and processing plants for directing fluid flow to different processing units, reactors, and storage tanks, ensuring efficient operation and process control.
- HVACIntegral in HVAC systems for distributing air or refrigerant flow among different branches, optimizing temperature control and air quality in residential, commercial, and industrial buildings.
- ConstructionUsed in construction projects for plumbing and drainage systems, allowing for the integration of pipes with different sizes to meet specific building requirements while ensuring efficient water and wastewater management.
Engineering
Technical notes
How the component behaves in the line, and the details to settle before an order is placed.
How it behaves in the line
- Concentric: centrelines of inlet and outlet are collinear
- Cone half-angle ≤ 7° recommended to avoid flow separation at high velocities
- Length H (overall) per ASME B16.9 depends on size combination
- Wall schedule may differ at large and small ends: confirm both ends during ordering
Confirm when ordering
- Specify Concentric or Eccentric: they are not interchangeable
- Give both sizes: e.g. 4" × 2" (large end × small end)
- Confirm wall schedule on both ends: may differ for cross-schedule combinations
Dimensions, wall thicknesses and pressure classes are in the dimension tables; the governing standards are summarised on the standards reference.
