Flanges
Tongue and Groove Flanges
Tongue and groove flanges, where a raised ring seats in a matching groove for alignment and gasket retention, in stainless and nickel alloys.
Specification
At a glance
- Facings
- Tongue · Groove
- Materials
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Nickel 200, Monel, Inconel, Hastelloy C22
- Duplex 2205
- Titanium, Copper-nickel, SMO 254, Aluminium, Galvanized, MS
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Tongue and Groove Flanges are indispensable components in industrial piping systems, offering a reliable solution for connecting pipes, valves, and other equipment.
Understanding Tongue and Groove Flanges

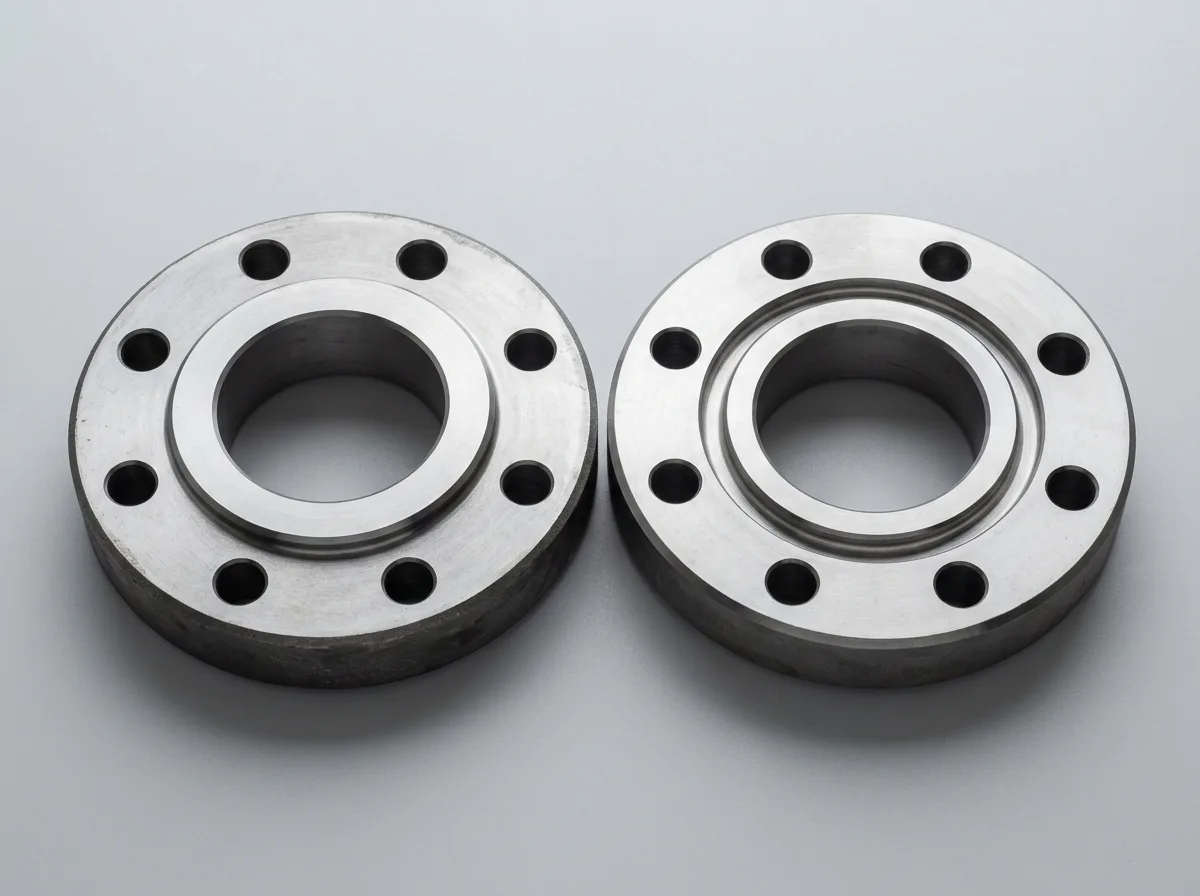

Tongue and Groove Flanges feature a unique design comprising two flanges, one with a raised ring (tongue) and the other with a corresponding groove. When bolted together, the tongue of one flange fits snugly into the groove of the other, creating a secure and leak-proof joint. This design ensures optimal alignment and sealing, making Tongue and Groove Flanges ideal for high-pressure and high-temperature environments.
Conclusion
Contact us today to explore our product range and request a competitive price list.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- High PrecisionTongue and Groove Flanges are designed for applications requiring precise alignment and sealing, such as in the oil and gas industry, chemical processing, and power generation.
- Versatile UsageThese flanges are suitable for a wide range of pipe diameters and are commonly used in systems where frequent disassembly is necessary for maintenance or cleaning.
- Secure SealingThe tongue-and-groove design ensures a tight and secure seal, minimizing the risk of leaks and enhancing system integrity.
