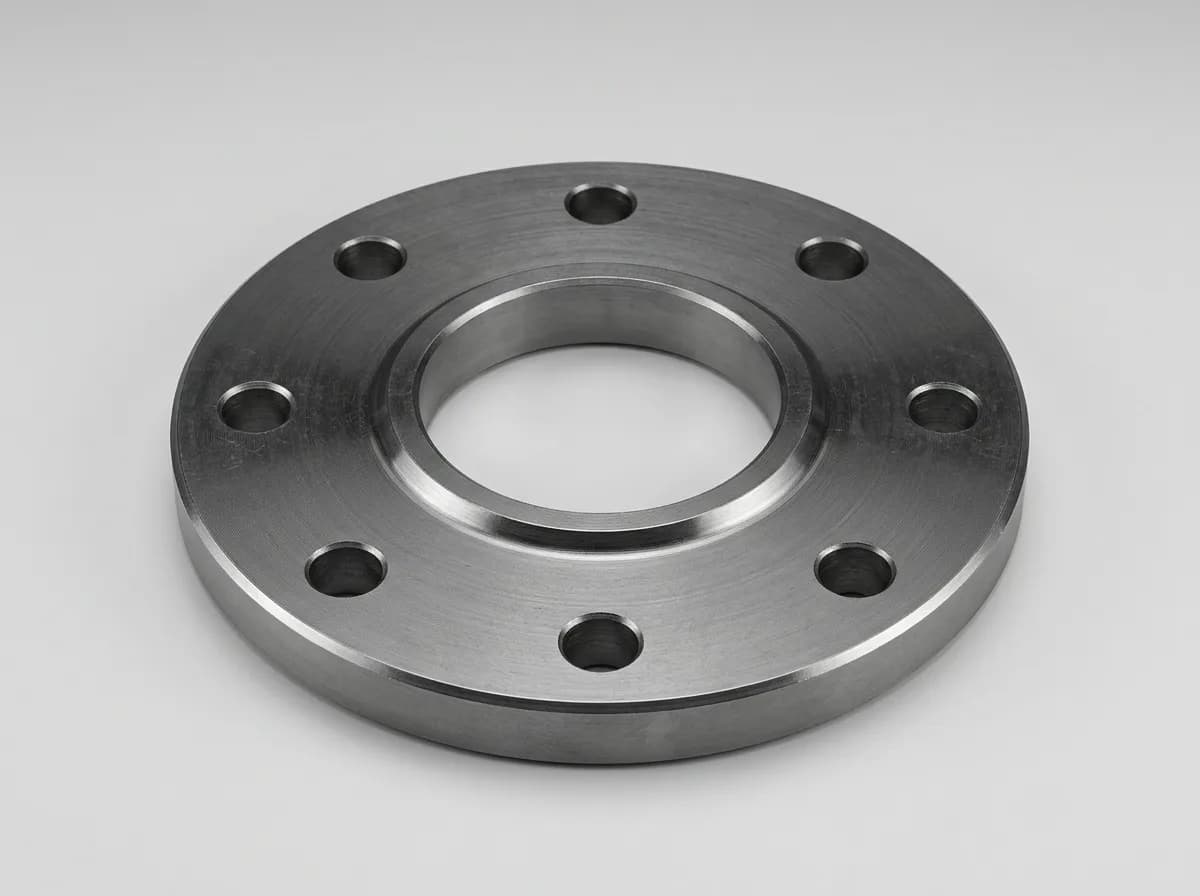

Slip-On Plate Flange (Raised Face)
Slip-on plate flanges that slide over the pipe and are fillet welded inside and out, with BS 10 slip-on tables in mild steel.
Specification
At a glance
- Types & ends
- Slip-on plate · Fillet welded both sides
- Facings
- Raised face (RF)
- Grade
- IS 2062 Gr. A
Dimension tables
2 classes · dimensions, weights, Excel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
At Fortune Fittings Private Limited, we understand the critical role that slip-on plate flanges with raised faces play in industrial connectivity. Designed to slip over pipes with a snug fit, these flanges offer a secure and reliable connection for a wide range of applications. In this comprehensive guide, we explore the intricacies of slip-on plate flanges, their features, applications, and specifications.
How Slip-On Plate Flanges Work
Slip-on plate flanges are ingeniously designed to slip over pipes, providing a convenient and efficient method of connection. The inside diameter of the flange is slightly larger than the outside diameter of the pipe, allowing for a snug fit. Once slipped over the pipe, the flange is secured in place with fillet welds at the top and bottom, ensuring a robust connection.
Standard Types of Slip-On Plate Flanges
- Features a raised face for enhanced sealing.
- Ideal for applications requiring a tighter seal and higher pressure ratings.
Conclusion
With our extensive range of material grades, specifications, and sizes, we ensure that our customers find the perfect solution for their industrial connectivity needs. Contact us today to explore our comprehensive product range and experience excellence in industrial fittings.
